Description
Syngenta XC Turf Nozzles (packs of 13) Si50002, Si50006, Si50008.
The added velocity of the larger droplets means they are significantly less vulnerable to drift. Importantly, research has shown the 04 XC foliar nozzle produces less than 3% small sub 100 micron-sized droplets that are highly susceptible to drift, compared to 14% with a traditional flat fan nozzle. In practice, the drift reduction naturally gives an average three to four extra days per month suitable for spray application - enabling more timely treatments that are crucial to achieve improved results.
The size of the nozzle orifice primarily dictates the spray water volume, within the restrictions of the sprayer speed and the operating pressure. In addition, when operating with larger 08 sized nozzles designed for wetting agents, liquid fertilisers and soil treatment fungicides, the angled spray pattern can achieve better penetration of the dense turf sward, to reach the target soil surface more effectively. The outputs are regulated, with an 04 nozzle giving twice the output of an 02 at any given speed and pressure, whilst an 08 will give twice the output of an 04, etc.
Application
Whilst one nozzle size can deliver different water volumes by adjusting speed and pressure, you can be more efficient and precise in your accurate application of the most appropriate water volume by selecting different nozzles sizes. A good selection to have available for consistent application in most turf situations at two to three bar would be a set of 025 nozzles for greens, delivering a water volume of 200 - 300 l/ha at four to five km/h; 04s applying 220 - 380 l/ha at five to seven KPH on fairways and a set of 08s that will deliver 450 - 770 l/ha at five to seven km/h.
Nozzle Output
| Speed | 4 km/h | 4 km/h | 7 km/h | 7 km/h |
|---|---|---|---|---|
| Pressure Bar (Colour) | 2 | 3 | 2 | 3 |

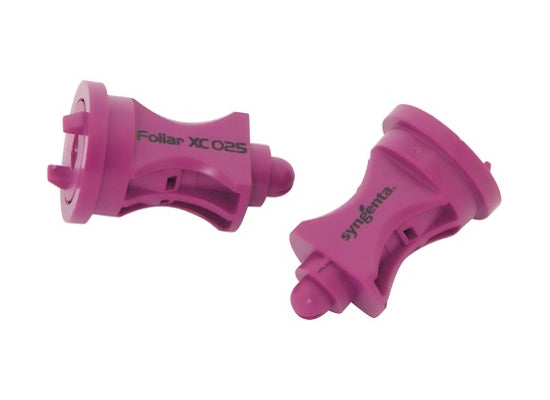

| 025 (Purple) | 245 | 300 | 140 | 171 |

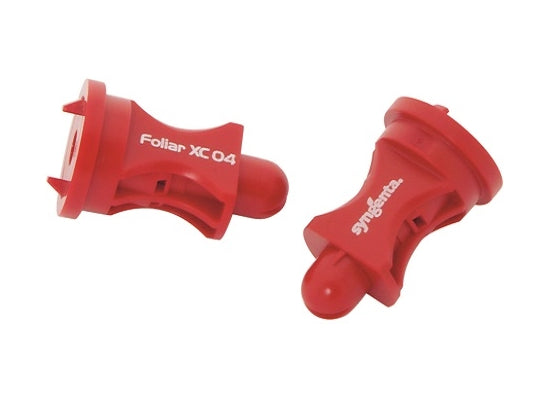

| 04 (Red) | 392 | 480 | 224 | 274 |

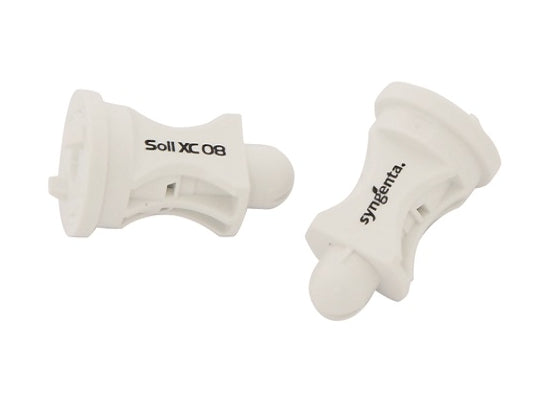

| 08 (White) | 784 | 960 | 448 | 590 |
Nozzle output (l/ha) from the Syngenta Turf XC Nozzles at typical spraying speed and pressure.
For further information on Syngenta Sprayer Nozzles please contact a member of our technical sales team on 01902 440280.
