Clegg Hammer - Impact Soil Tester Type CIST/883 – Golf Course

The Clegg Impact Hammer Soil Tester for Golf Courses is used to measure the hardness or shock absorption properties of turf surfaces.

It is particularly suitable for ensuring playing surface quality on golf greens and bowling greens. In addition, it can be used to assess the safety and playability of winter sports pitches.

SKU: 188162
Sale price£2,128.44 ex. VAT
£2,554.13 inc. VAT
(minimum of 1)


Clegg Impact Hammer Soil Tester for Golf Courses - 0.5 kg


A Clegg Impact Hammer assists with the preparation of quality and consistent playing surfaces in many sports. It can be used to aid decisions relating to playing surface quality and safety, as well as turfgrass health. The Clegg Impact Hammer soil tester is simple to use and produces straightforward and unbiased results.

The Clegg Impact Hammer soil tester can be used in golf to aid the assessment of greens playing qualities relating to ball impact, bounce and spin. Firmer surfaces are associated with a fair but challenging game that is rewarding to accurate play.

Winter sports which have a risk of injury due to hard ground can similarly take advantage of the unbiased results provided by the Clegg Impact Hammer to aid decisions relating to safety. The results have been demonstrated to correlate closely with head injury severity indexes. In addition, the test can be used to indicate shock absorption and ball rebound qualities of the playing surface.

Use of Clegg Impact Hammer soil test on different sports surfaces+

Surface Drop Height (mm) Target Reading (G*) Source
Golf Greens (links) 500 100 - 130 STRI
Golf Greens (parkland) 500 80 - 100 STRI
Winter Sports 550 35 - 200 FA

+ The Clegg Impact Hammer can also be used on other types of surface (e.g. tennis courts, bowling green, equestrian surfaces etc.)
*Deceleration due to gravity.

The Clegg Impact Hammer can also be used to assess surface consistency throughout the year and across different areas of a surface. This requires multiple measurements to be made across the surface of the pitch to calculate the degree of variation between measurements.

Suggested number of measurements to test for consistency

Surface Number of Locations
Golf Greens 5 - 20
Winter Sports 20 - 70

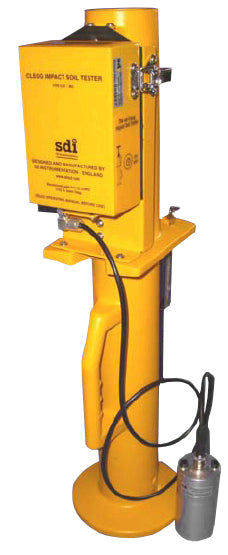

Operating Principle: The Tester consists of a 0.5 kg compaction hammer operating within a vertical guide tube. The Hammer falls through the tube when released and strikes the surface under test, decelerating at a rate determined by the stiffness of the material within the region of impact. The readout registers the hardness values in units of Gravities (G). Harder surfaces will have a higher G reading.

Design: The Clegg Impact Hammer Soil Tester is a very rugged design suitable for prolonged use in damp, dirty and harsh site environments. The CIST/883 readout unit is made from high strength alloy that has been proven to last for decades. The unit runs from 2 x AA batteries for typically 12 months operation. The CIST/883 Clegg Impact Soil Tester is a compact and reliable instrument. A Transit & Storage Case is included.

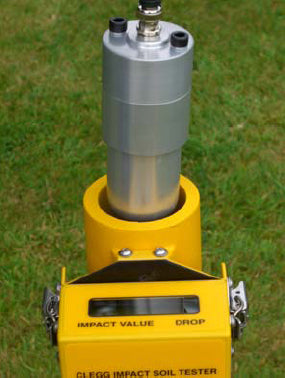

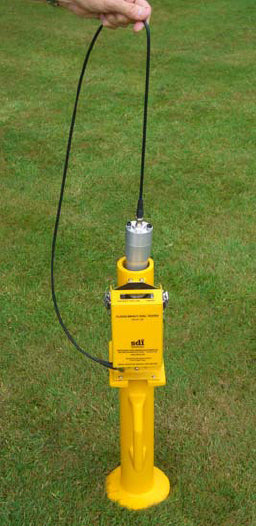

Test Procedure: Carrying out a test is quick and straightforward. The guide tube is placed in position vertically on the surface to be tested. The digital readout is located on the guide tube during testing allowing easy use as there is no need to hold the readout in the hand. The hammer is raised to the desired height and then allowed to fall freely. This procedure is repeated three times. The reading achieved on the third drop being recorded as the measurement value. The test data is recorded in the instrument and it is downloadable to a computer wirelessly by Bluetooth.

Features of the Clegg Impact Hammer Soil Tester for Golf Courses

Hammer Weight 0.5 kg

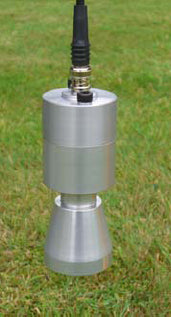

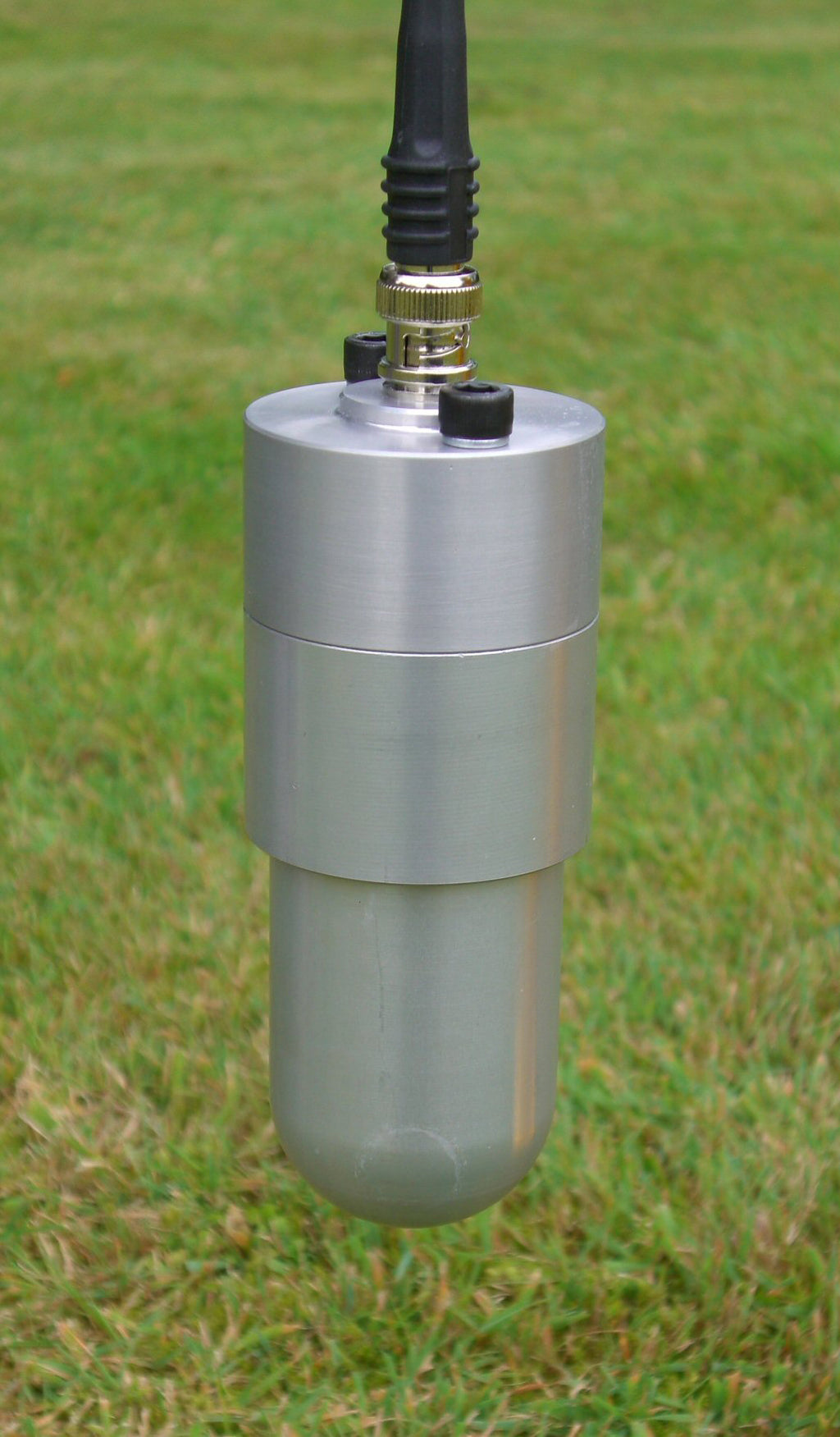

Domed and flat hammers provided

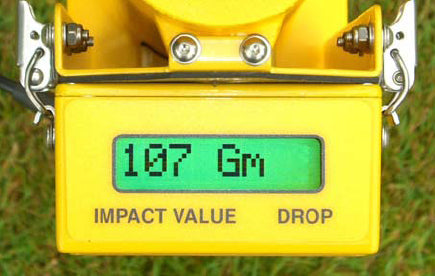

Readout Display Easy to view backlit vertical display clamped to Guide Tube.
Readout Range Up to 500 Gravities (G)
Power Source Two 'AA' cells.
Battery Life Up to 12 months
Data Storage in Readout Flash memory for approx. 10,000 drop tests. Each stored field contains the time and date of the test and firmness.
Data Transfer Method BluetoothTM Wireless data transfer to PC or laptop.
Data Files when Transferred Comma Separated Variable (CSV) data for manipulation in 3rd party packages such as ExcelTM.
Transit & Storage Case Wooden Case
Size & Weight (approx). 60 x 13 x 13 cm.
Instrument Weight: 2.9 kg
Packed weight in case: 8.5 kg

If you require any further information regarding the Clegg Hammer, contact our technical sales team on 01902 440280.
