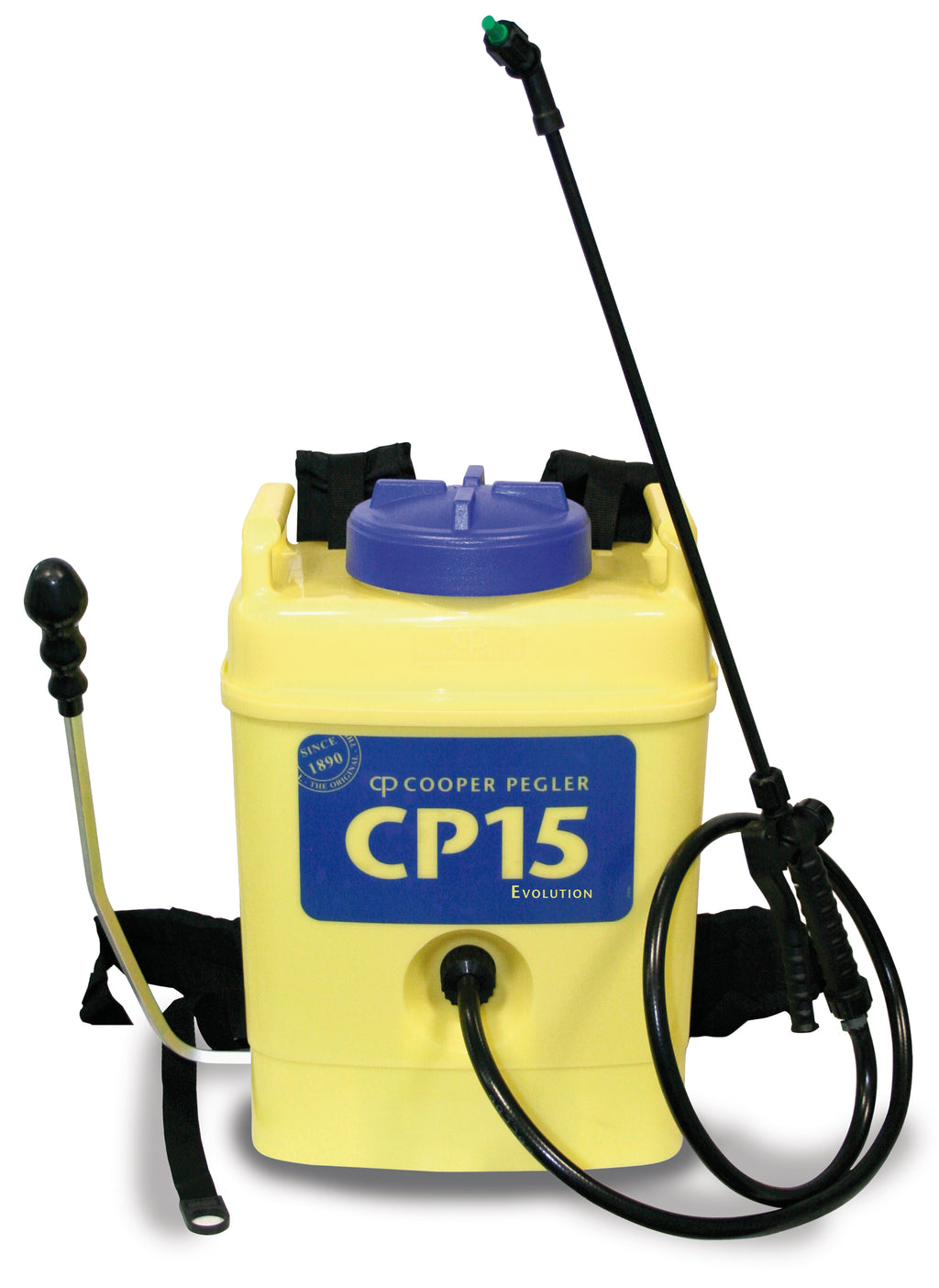

Cooper Pegler CP15 Evolution Knapsack Sprayer 15 L

The CP15 Classic 15 L Knapsack Sprayer has been developed to create the CP15 Evolution Knapsack Sprayer 15 L.

As the name suggests, it has evolved to be more user-friendly, and is now equipped with an ergonomic carrying system with comfortable shoulder straps and waist belt to enable you to work better for longer.

SKU: 158920
Sale price£181.94 ex. VAT
£218.33 inc. VAT
(minimum of 1)


CP15 has been the favourite sprayer for more than 20 years in agriculture, horticulture and parks and gardens. This is down to its unbeatable durability, toughness and spray quality. The CP15 Evolution has all these things and more!

Key Features

  • Ergonomic carrying system
  • Ultra-comfortable shoulder straps and waist belt resulting in a significant reduction in discomfort
  • Two handles on the tank for easy handling
  • Unique membrane pump system ensures a long life and maximum spraying convenience due to its flexible pumping

CP15 Evolution Knapsack Sprayer -


  • Reinforced hose for greater pressure resistance
  • High resistance Glassfibre Reinforced Plastic lance and trigger
  • Low mesh strainer to filter out dirt. Supplementary filter in trigger
  • Wide filler hole to prevent overflow when filling
  • Pressure control valve with fixed settings for spraying herbicides/insecticides and fungicides
  • Very resistant, unique diaphragm pump
  • Adjustable re-inforced lever for left/right hand operation
  • UV stabilised polypropylene tank for a durable yet lightweight sprayer
  • All working parts mounted inside the tank to prevent damage
  • Multi-nozzle adapter*

*Nozzles included: Yellow Hollow Cone and Green Anvil.

Colour Volume (L/ha) Characteristics
Yellow Hollow Cone 140 For plant protection. Produces light droplets, specifically for use with insecticides and fungicides.
Green Anvil 50 For weedkilling. At a low pressure, the anvil nozzle produces a large droplet size which reduces the chances of drift.



CP 15 Evolution Comfort with Safety Harness
Tank Litres 15 L
Material Polypropylene
Filler Neck 140 mm
Max Working Pressure 3 bar (45 psi)
Total Weight 4.25 kg
Harness Material Polyethylene pads with polyester fibre braiding and reinforced foam
Lance Length 500 mm
Hose Length 1360 mm

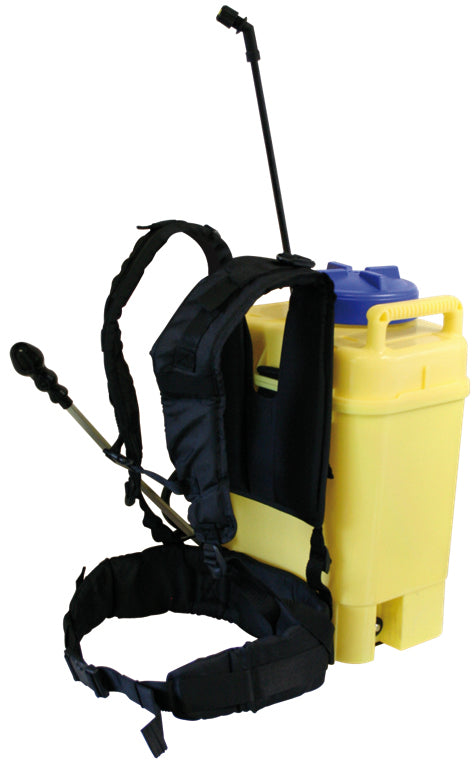

An Optimised Design for the Safety Harness

  • Adjustable straps with reinforced foam and tensioners, which adjust to suit the user's body and protects the user's shoulders
  • The chest strap ensures the stability of the sprayer and alleviates lateral tension
  • Adjustable waist strap enables the user to distribute the weight of the sprayer to ensure stability
  • Reinforced back support, so no direct contact with the tank for improved comfort

Instruction Booklet

For more information on how to use the sprayer, please view the Instruction Booklet.

Compatible with the Cooper Pegler CP15 Classic 15 L Knapsack Sprayer is our Cooper Pegler Multi Nozzle Spray Boom Extensions.

For further information on the CP15 Evolution, please contact a member of our technical sales team on 01902 440280.

Technical Information


evolution cp15 instruction booklet 188283 (PDF)
