Description

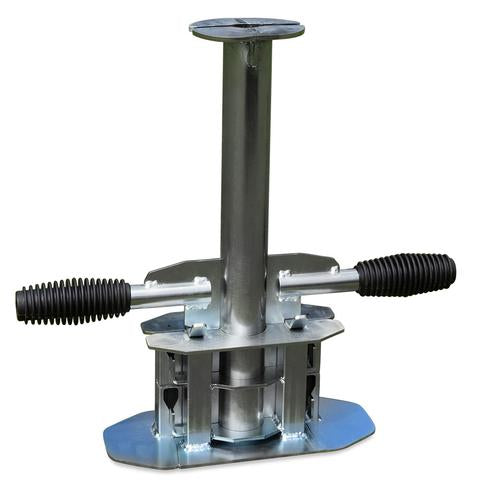

Impact 3 Soil Sampler
Originally designed and used by Cricket Pitch Inspectors, the Impact 3 Heavy Duty Soil Sampler is a superior piece of sampling equipment which provides users with the ability to take cross section soil samples in the hardest and most compact of ground conditions.
Key Features
- Split frame design: Allows easy sample removal without damage
- No blade removal required: Eliminates physical effort of separating blades
- Professional construction: Built for durability and consistent performance
- Clean sample extraction: Prevents smudging or damaging of samples
- Efficient operation: Significantly reduces time and effort compared to traditional samplers
- Innovative split frame design maintains soil sample integrity and reduces physical effort on the operator.
- Increased frame strength and durability.
Gallery

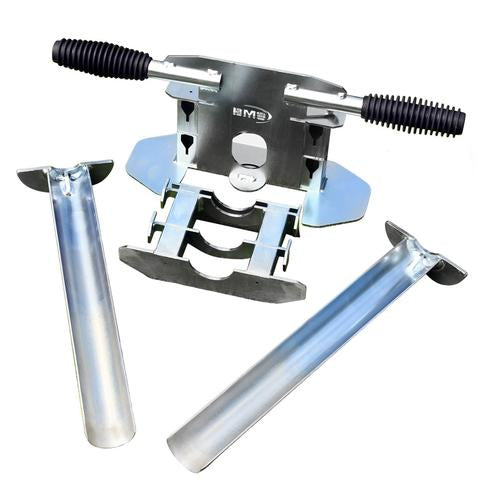

Redesigned Frame
The new Impact 3 Heavy Duty Soil Sampler features an innovatively redesigned frame that allows you to split the supporting frame into two halves. This means that when taking a sample you no longer have to physically pull up on the blades in an effort to view the sample. Instead you can simply split the frame in half to view the soil core within.
This has the benefit of significantly reducing distortion or smudging of the sample, as well as making the task easier for the user, by completely eliminating any physical effort needed to separate the blades from the tool.
Furthermore, the redesign of the sampler frame has provided opportunity to upgrade the durability of the tool. New reinforcing points to the blade tops and a complete structural overhaul to the supporting frame combine to increase the overall strength and longevity of the equipment.
Please Note: This piece of equipment must only be used in conjunction with a dedicated nylon faced mallet.
A mallet of this type will increase the lifetime of the instrument and significantly reduce physical strain on the operator.
Specifications
- Sample hole diameter 5.08cm (2")
- Sample hole depth 20.32cm (Just over 8")
- Design: Split frame construction
Technical Information
Assembly Requirements: Minimal - ready to use out of the box.
Maintenance Needs: Clean after use, store in dry conditions, ensure regular blade maintenance.
Recommended Usage: Must be used with a dedicated nylon-faced BMS mallet like the Blue Strike Impact Dead Blow Mallet.
Safety Considerations: Handle with care due to sharp edges.
FAQs
For further information regarding Impact 3 Soil Sampler, please contact our technical sales team on 01902 440250.
