Description

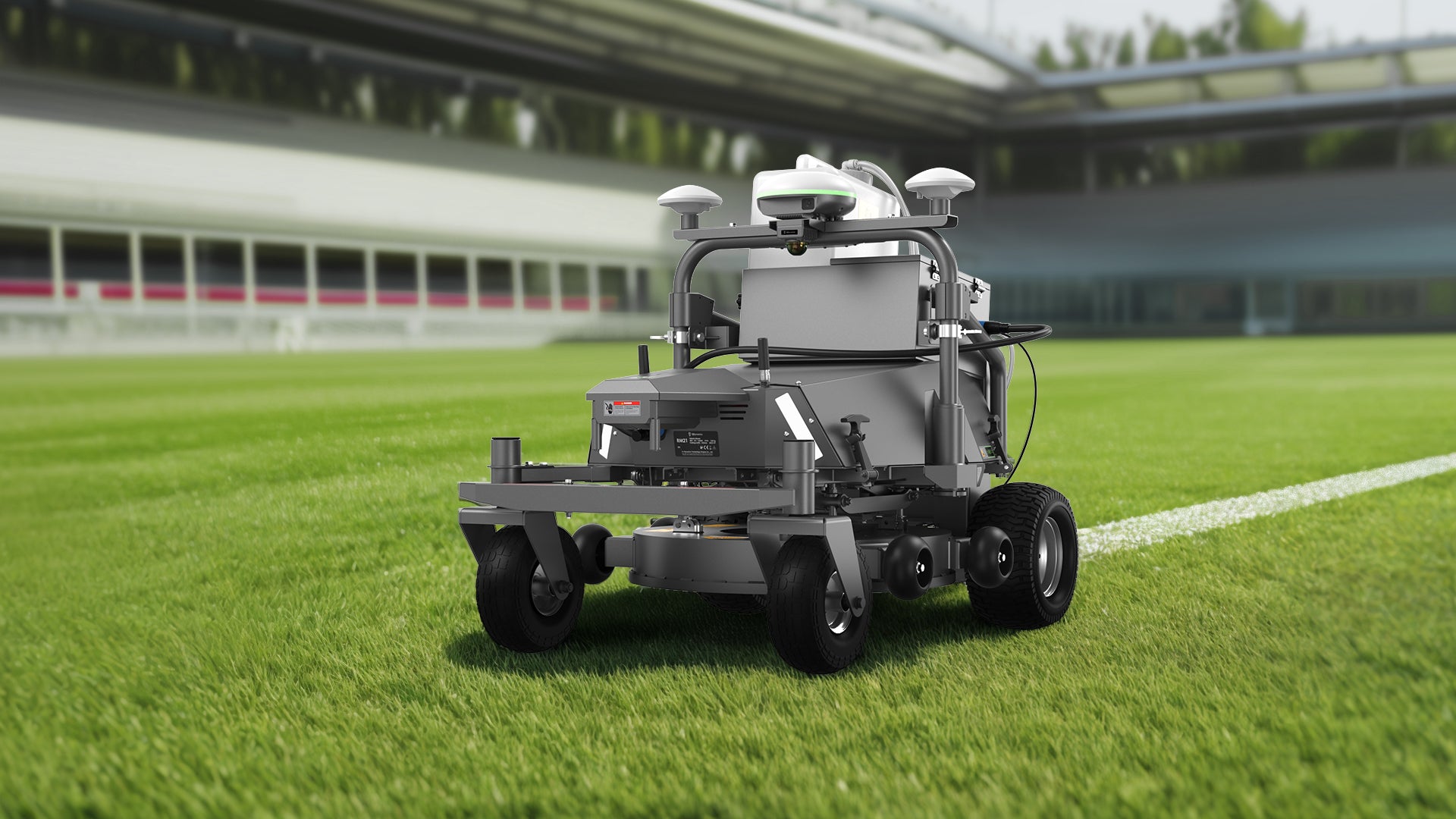

RM21 Marker & Mower
The RM21 Combo includes a 25” rotary mower, line marker, charging dock, bespoke tablet with all software plans, and a Radio RTK station for precision over marking. It can also be supplied as just a mower or line marker, with optional attachments included a grass/leaf collector/hoover and dispenser, and brushes for different tasks that simply attach to the main RM21 unit.

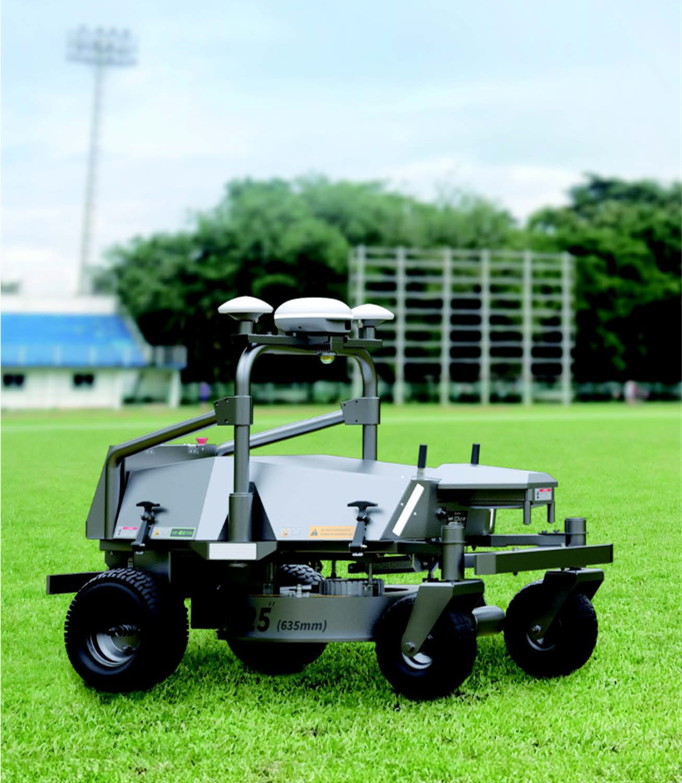

Mowing Redefined for Precision and Stability
The FJD RM21 Fully Autonomous Lawn Mower is the perfect solution for professional lawn care providers who demand efficiency and reliability. Designed for multiple scenarios, including sports fields, Golf courses and orchards, the RM Series features an intelligent control system, pure electric drive, and a large-capacity battery to maximize mowing efficiency, save time, effort, and cost. The pure electric design eliminates oil leaks and grass damage.
Protection meets innovation
360° Real-time obstacle detection
Uses LiDAR to detect surrounding obstacles without blind spots, with three distance modes to choose from, ensuring safety.
Comprehensive protection
Our mower safeguards itself with collision bumpers and rain monitoring. We've got every angle covered for a safe and plawless operation.
Make mowing easier and smarter
Our lawn mower app makes mowing easier and smarter by giving you the power to control your mower anytime, anywhere.
Reliable performance
No more battery anxiety
Automatically returns to the charging station for charging when the battery is low, without manual interventions, significantly improving work efficiency.

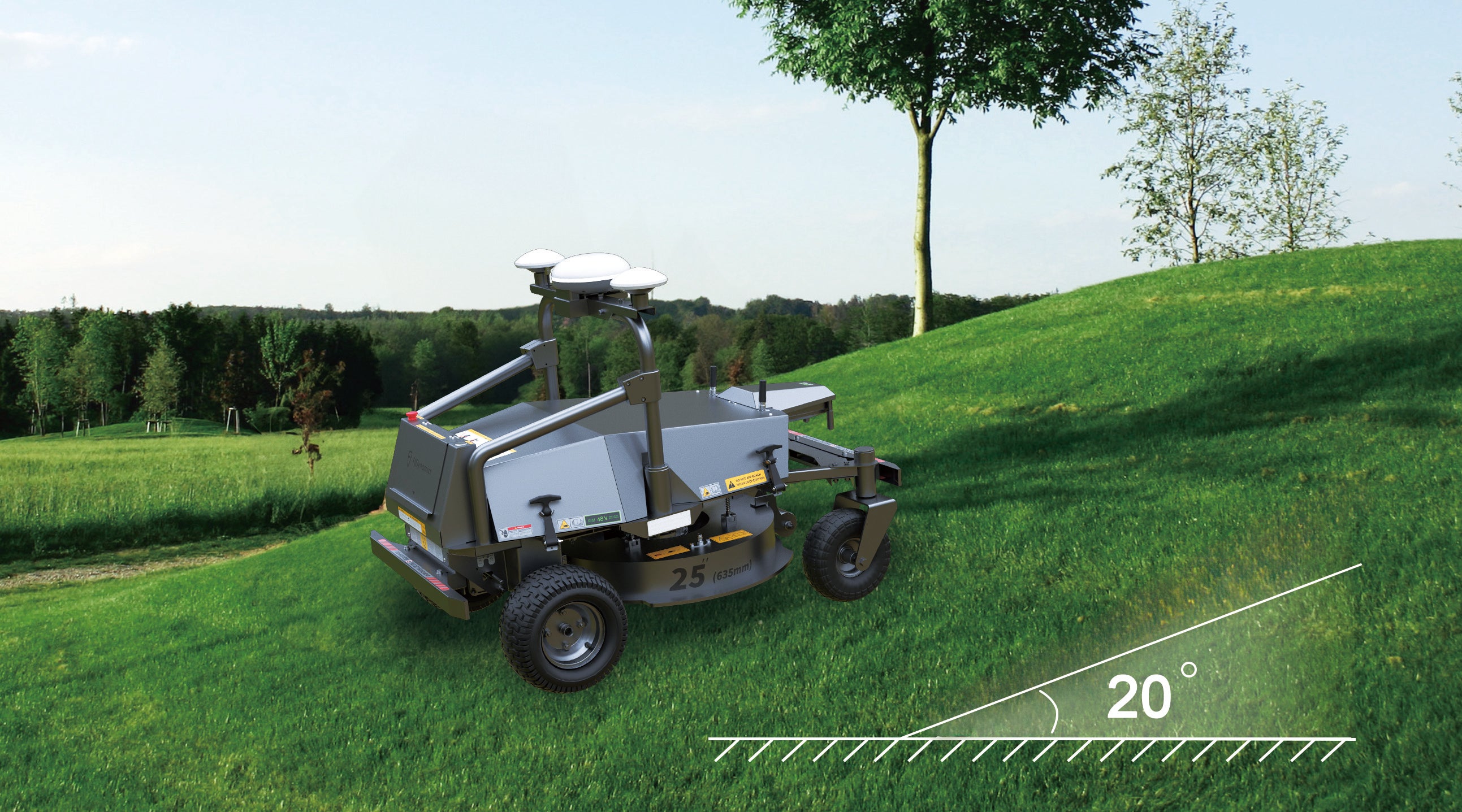

No more worry about climbing hills
Climbing ability up to 20°, can handle more complex and changeable terrain.
Suitable for various types of surfaces
- Park lawns
- Sports fields
- Farm lawn
- Orchards
- Golf courses
- Landscaped lawns
Specifications
| Weight (with 2 batteries) | 375lb / 170kg | Ground Speed | 0-3.7mph / 0-6km/h |
|---|---|---|---|
| Dimensions | L52" (1330mm) x W34" (857mm) x H40" (1012mm) | Max Operations Area per Three Days | 22 Acres / 90,000 m²* |
| Number of Blades | 1 | Max Operations Area per Charge | 3.2 Acres / 13,000 m²* |
| Cutting Height | 0.8-5"/ 20-127mm | Average Working Time | 5 hours |
| Cutting Width | 25" / 63cm | Maximum Gradeability | ≤20° |
| Battery Capacity | 4kWh | Charging Time | 5 hours |
| Battery Voltage | 48 VDC | Waterproof | IPX4 |
| *Working area capacity is variable due to grass type, soil, cutting height and slope. | |||

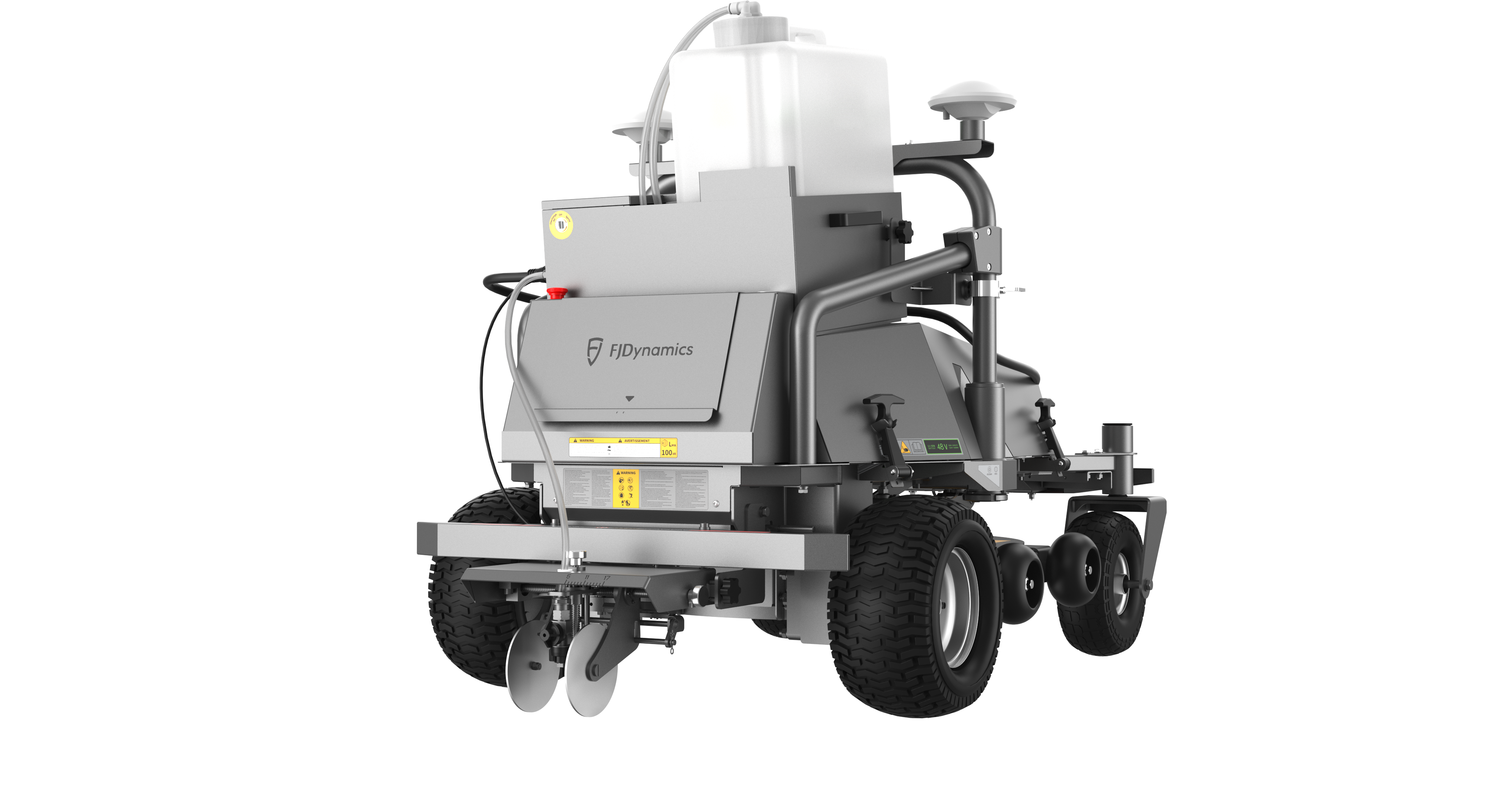

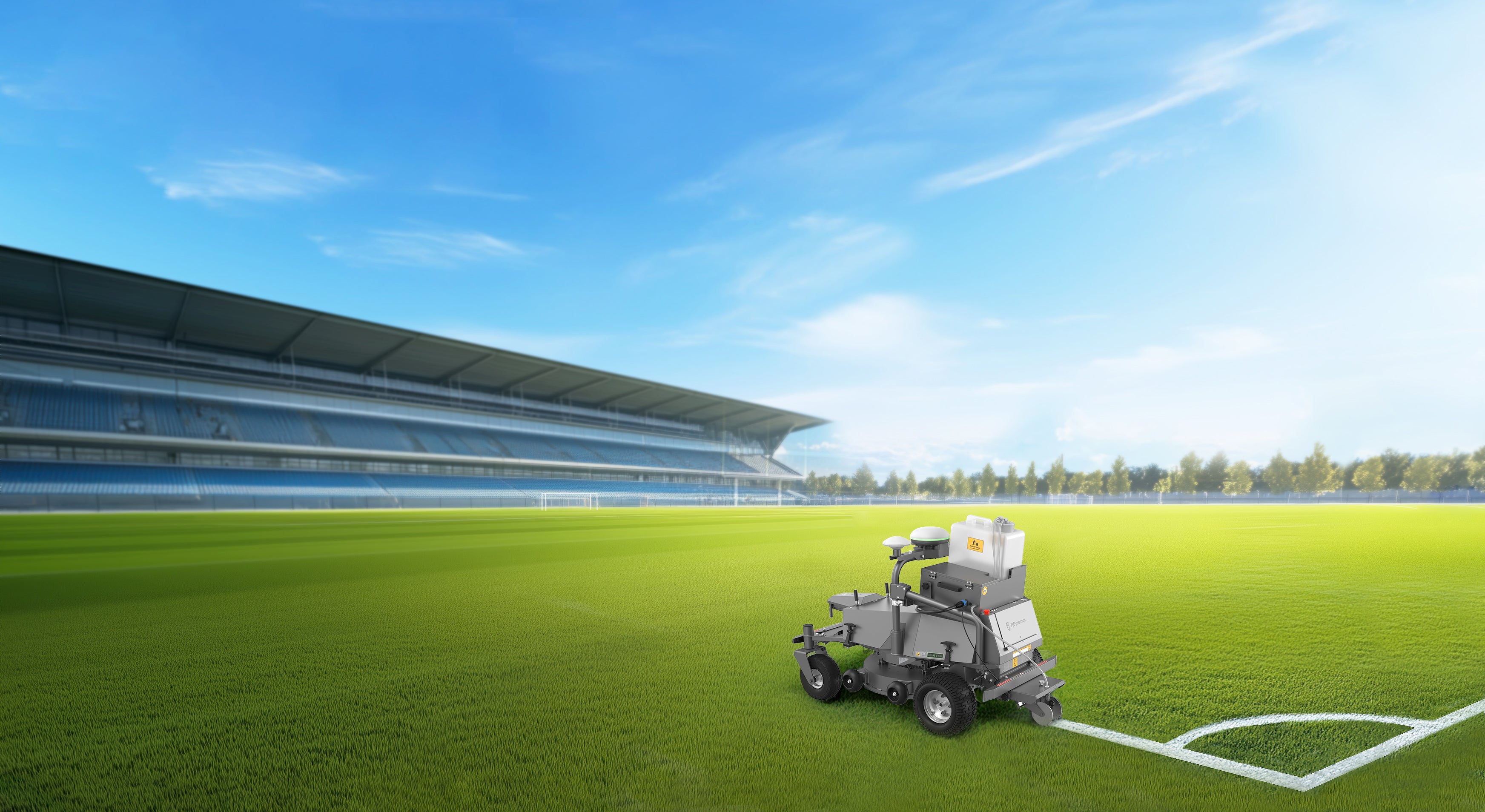

Line Marker Kit
Make line marking easier
Perfect sports field lines don't happen overnight. It takes high precision marker to make your field the best it can be. The LM01 comes standard with a top-class navigation system that makes precise lines marked in minutes with an ultra-long battery life. With customizable maps and lines, this marking robot lets you get perfect results for all your sports pitches including football, rugby, lacrosse, American football, field and track, rounders, softball and baseball.
High precision from start to finish
A local base station provides stable signals to ensure every line is marked precisely on point.
- Achieve the highest possible marking accuracy
- Reduce the risk of signal drift with super stability
- Save money by eliminating the need to purchase additional NTRIP accounts
Save costs, increase efficiency
- Save labor costs by up to 90%+
- Reduce paint consumption by about 50%+
- Work longer, mark 20 standard football fields (11v11) per full charge
- Cover various sports fields; from football, rugby, American football, hockey to tennis, and more
Intuitive interaction and simple operation
- Offer an array of built-in marking templates for quick and easy development
- Support multiple map creation methods to meet different marking needs
- Identify the starting point automatically for marking without manual interventions
- Resume marking from where is left off for continuous workflow
Safe and reliable
Provide dual protection of 360° laser radar monitoring and physical anti-collision, eliminating your safety concerns about unmanned marking.
Specifications
| LM02 Weight (no blade disc) | 157kg | Rated voltage | 48 V DC |
|---|---|---|---|
| RM21+LM01 Weight (with blade disc) | 187kg | Rated power | 150 W |
| Speed | 2km/h | Rated current | 3 A |
| Paint capacity | 25L | IP Rating | IPX4 |
| Marking width range | 5-17cm | Est marking time per full charge | 5-6 hours |
| Nozzle height | 3-8cm | Working temperature | 5-35°C |
Optional accessories include Grass Collection Kit - developments on going for further additions
For further information, please contact a member of our technical sales team on 01902 440250 or sales@pitchcare.com
Technical Information
Product Information Sheet
SKU - 232300
